Excavator 5t

SKU: 42478
Reviews: Be the first to review

  E50 Compact Excavator

Specifications & Options
E50
Close/Open all PDF version
Weights
Operating weight
4,905 kg
Additional weight for cab with HVAC
19 kg
Additional weight for long dipperstick
235 kg
Ground pressure with rubber tracks
26.9 kPa

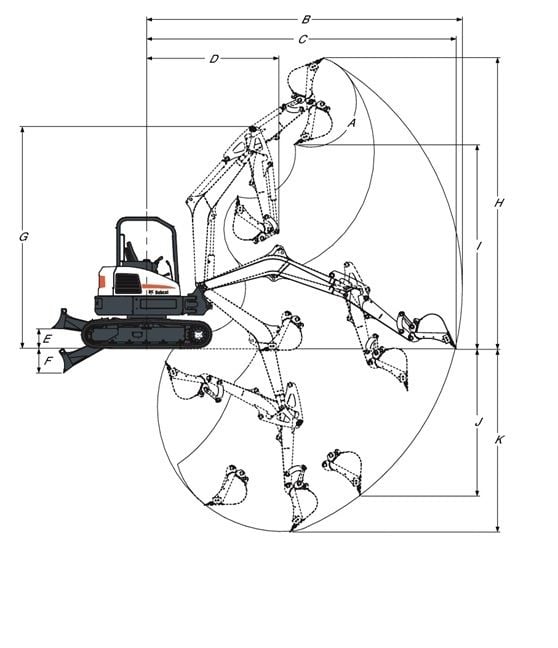

Working Range


(A)
Bucket pivot angle
185 °
(B)
Maximum reach of working equipment
6,062 mm
(B)
Maximum reach of working equipment, long dipperstick
6,441 mm
(C)
Maximum reach at ground level
5,939 mm
(C*)
Maximum reach at ground level, long dipperstick
6,333 mm
(D)
Maximum working equipment radius with boom at maximum height and dipperstick fully retracted
2,541 mm
(D*)
Maximum working equipment radius with boom at maximum height and dipperstick fully retracted, long dipperstick
2,639 mm
(E)
Maximum blade height
385 mm
(F)
Maximum blade depth
465 mm
(G)
Maximum height of working equipment with dipperstick retracted
4,269 mm
(H)
Maximum bucket tooth height
5,595 mm
(H*)
Maximum bucket tooth height, long dipperstick
5,850 mm
(I)
Maximum dump height
3,924 mm
(I*)
Maximum dump height, long dipperstick
4,179 mm
(J)
Maximum depth of vertical wall which can be excavated
2,815 mm
(J)
Maximum depth of vertical wall which can be excavated, long dipperstick
3,199 mm
(K)
Maximum digging depth
3,524 mm
(K*)
Maximum digging depth, long dipperstick
3,923 mm

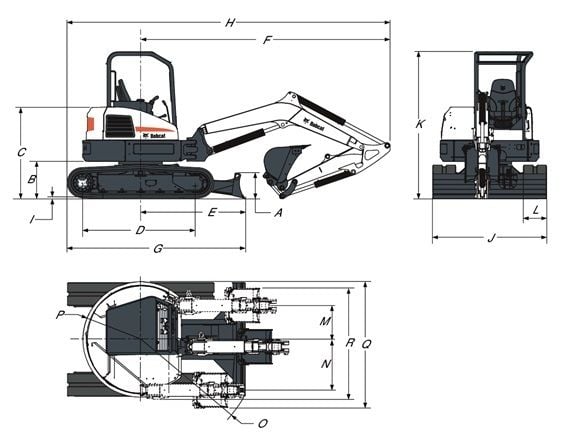

Dimensions


()
(* Dentoes values which long dipperstick installed)
(A)
Blade height
446 mm
(B)
Clearance, upper structure to ground line
640 mm
(C)
Ground line to top of engine cover
1,575 mm
(D)
Length of track on ground
1,998 mm
(E)
Machine centre line to blade
1,788 mm
(F)
Minimum radius in travel position
4,294 mm
(G)
Overall length of track assembly
3,049 mm
(H)
Overall length in travel position
5,555 mm
(H*)
Overall length in travel position, long dipperstick
5,563 mm
(I)
Track lug height
25 mm
(J)
Blade width
1,960 mm
(K)
Height
2,541 mm
(L)
Track width
400 mm
(M)
Machine centre line to working equipment centre line, left-hand rotation
586 mm
(N)
Machine centre line to working equipment centre line, right-hand rotation
675 mm
(O)
Minimum turning radius
2,027 mm
(P)
Swing clearance, rear
997 mm
(P*)
Swing clearance, rear (zero tail swing), long dipperstick
1,071 mm
(Q)
Working width at maximum right-hand rotation
2,074 mm
(R)
Working width at maximum left-hand rotation
1,874 mm
Engine
Make / model
Kubota / V2403-M-D1-TE3B-BC-4
Fuel
Diesel
Number of cylinders
4
Displacement
2,433 cm3
Maximum NET power (ISO 9249)
35.4 kW
Maximum NET torque (ISO 9249)
179.5 Nm
Performance
Digging force, dipperstick (ISO 6015)
28,700 N
Digging force, long dipperstick (ISO 6015)
26,100 N
Digging force, bucket (ISO 6015)
42,000 N
Drawbar pull
52,343 N
Travel speed, low range
3.1 km/h
Travel speed, high range
5 km/h
Hydraulic System
Pump type
Single outlet variable displacement, load sensing torque limited pump
Piston pump capacity
138.5 L/min
Auxiliary flow
75.7 L/min
Auxiliary relief
210.0 bar
Slew System
Boom swing, left
75 °
Boom swing, right
50 °
Slew rate
9 RPM
Fluid Capacities
Cooling system
8.3 L
Engine lubrication plus oil filter
7.1 L
Fuel reservoir
79.9 L
Hydraulic system
54.9 L
Environmental
Noise level LpA(EU Directive 2006/42/EC)
81 dB(A)
Noise level LWA(EU Directive 2000/14/EC)
96 dB(A)
Whole body vibration (ISO 26311)
0.2 ms-2
Hand-arm vibration (ISO 53491)
0.4 ms-2
Standard Features
1960 mm dozer blade
400 mm rubber track
Auto idle
Auto shift travel
Auxiliary hydraulics with Quick Couplers
Selectable auxiliary hydraulic flow
Blade float feature
Clamp ready
Control console locks
Cupholder
Engine/hydraulic monitor with shutdown
Fingertip auxiliary hydraulic control
Horn
Full fuel warning alarm
Hydraulic joystick controls
Retractable seat belt
Suspension seat with high back
TOPS/ROPS* canopy (1)
Two-speed travel
Work lights
Warranty: 12 months, 2000 hours (whichever occurs first)
(1) Roll Over Protective Structure (ROPS) Meets requirements of ISO 3471. Tip Over Protective Structure (TOPS) Meets requirements of ISO 12117.
Options
Air conditioning
Long dipperstick
2nd Auxiliary hydraulics
Deluxe textile suspension seat
Boom safety valve with overload warning
Boom & arm safety valves with overload warning
AM/FM stereo radio
FOGS kit (Overhead guard)
Lifting chain kit
Travel motion alarm
Steel tracks
Beacon kit
Left and right mirror kit
Additional work light kit
Rubber bolt-on pads for steel tracks
Special applications kit

Specs / Additional information

Cleaning Charges Will Apply If Returned Dirty Min Charge $60.00, Roll Over Not Covered By Damage Waiver,  Track Damage chargeable.

Click here to download Brochure PDF

Mode of Transport

Tilt Tray

Safety Requirements

Safety Boots, Hi Vis Vest, Eye Protection, Hearing Protection, Hard Hat

Click here to download Saftey Instructions PDF
